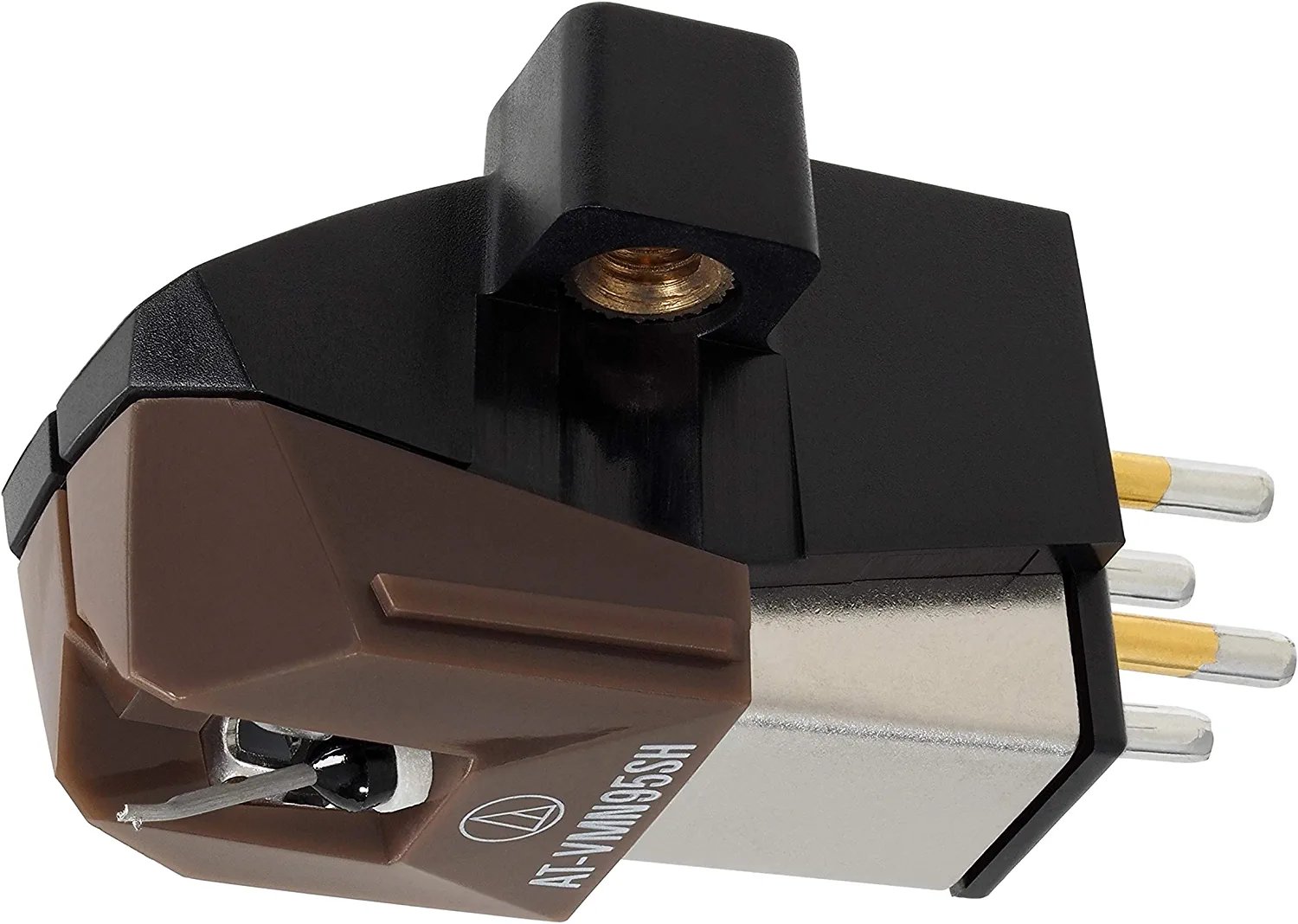

Description This VM95 Series cartridge with 2.7 x 0.26 mil Shibata stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli. FeaturesLow Distortion & High Channel SeparationShibata StylusFrequency Response: 20 Hz to 25 kHzLow-Resonance HousingInterchangeable with Any AT-VMN95 StyliIncludes Threaded Inserts for MountingIncludes Mounting Hardware ScrewdriverSpecificationsFrequency Response20 – 25,000 HzChannel Separation23 dB (1 kHz)Vertical Tracking Angle23°Vertical Tracking Force1.8 to 2.2g (2.0g standard)Stylus ConstructionNude Square ShankRecommended Load Impedance47,000 ΩCoil Impedance3.3 kΩ (1 kHz)DC Resistance485 ΩCoil Inductance550 mH (1 kHz)Output Voltage3.5 mV (@ 1 kHz, 5 cm/sec)Output Channel Balance1.5 dB (1 kHz)Stylus ShapeShibataCantileverAluminium PipeStatic Compliance20 x 10 – 6 cm / dyneDynamic Compliance10 x 10 – 6 cm / dyne (100 Hz)Mounting1/2” centresCartridge Weight6.1gDimensions17.2 x 18.9 x 28.3 ( H x W x D mm)Accessories IncludedTwo 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriverModelAT-VM95SHRecommended Load Capacitance100-200 pFReplacement StylusAT-VMN95SHStylus Size2.7 x 0.26milTypeVM Stereo Dual MagnetWire Used for CoilT.P. Copper
