Wizord 4i energizer Features:

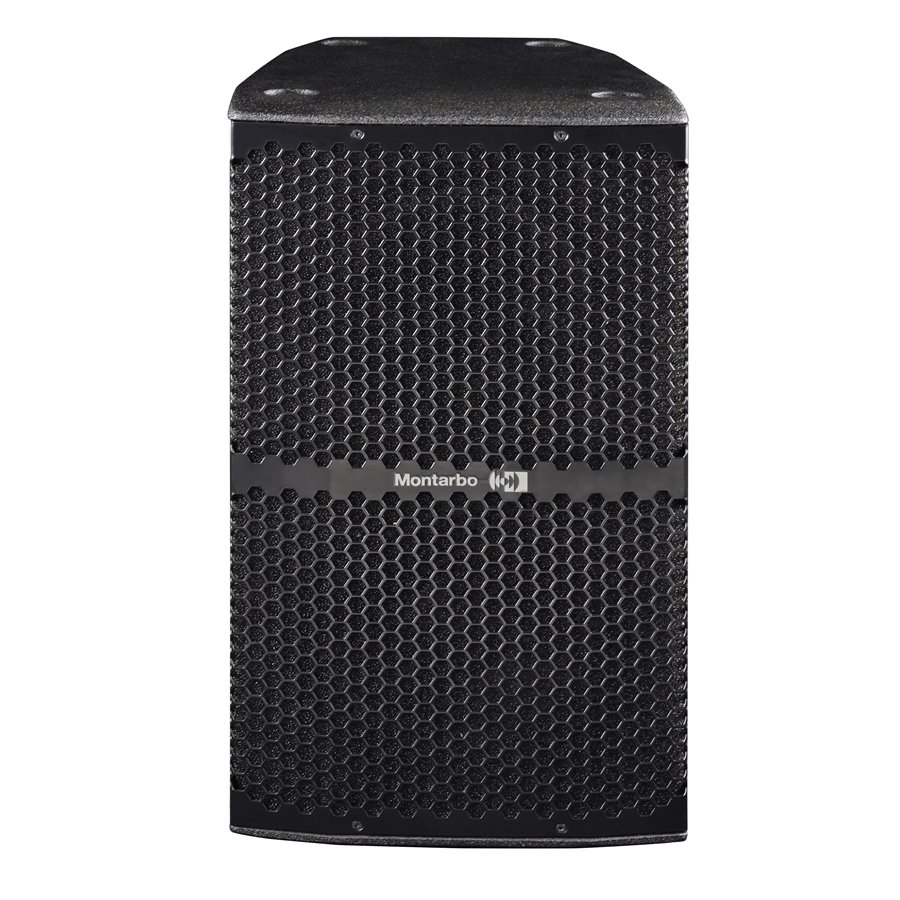

Description The “Quasi 3-Way” acoustic design, combined with a sophisticated audio signal processing system, defines the new point-source standard, result of a 1.4” high-frequency coaxially horn-loaded driver with a 10” transducer with 3” voice coil, and an additional 10” woofer with 2.5” voice coil.The cabinet made in birch multiply with a polyurea finish is characterized by a complex internal structure of wood and steel reinforcements, that ensures great sturdiness. The two woofers, loaded in back-reflex configuration, guarantee a fast powerful defined response to low frequencies, without interferences in the midrange thanks to the asymmetrical crossover that allows only the upper woofer the reproduction of the vocal range.The coaxial coupling of the high frequencies driver ensures a coherent and transparent overall response, and a extremely linear 70° horizontal and 50° vertical coverage. The Class-D amplifier features two high-efficiency channels, ensuring a 1600 W RMS total power that allows the speaker a 135 dB with a 65 Hz a 18 kHz frequency response.An advanced 24-bit 96kHz DSP ensures consistency, linearity and reliability thanks to the innovative proprietary M-Modelling, technology, able to model the phase and frequency response through sophisticated digital algorithms, for a superb reproduction of sound details offering an unprecedented dynamic.8 presets, 4 of which are user-programmable, make the system suitable for any use, thanks also to the Dante analog and digital inputs for a versatile and complete plug & play connection. Through two ethercon connectors shared with the Dante port, several speakers can be connected to the network to access multiple device parameters.The architecture is based on the M-Connect proprietary software that, through a simple advanced interface allows the control and the tuning of the installed system. A point-topoint Wi-Fi connection with access via a dedicated app facilitates the stand-alone control of some basic speaker parameters such as volume and mute. A proprietary control system allows the authentication of the product.The EARTH PRO Series subwoofers allow the range of WIND PRO models to be extended up to 28 Hz. A complete range of integrated optional rigging Montarbo® accessories allows the system to be installed in any situation.FeaturesVery high performance-to-size ratio2-channel amplifier 800 W 800 W RMS135 dB SPLQuasi 3-Way acoustic design10” ferrite coaxial speaker with 3” voice coil and 1,4” Driver with 3” voice coil10” neodimium woofer with 2,5” voice coil70° horizontal, 50° vertical coverage24 Bit 96 kHz DSP with M-Modelling TechnologyIntegrated DANTEM-Modelling TechnologyCompatible Softwares: M-Connect and M-SimulationWi-Fi ConnectionM-ID authentication system via appIntegrated RiggingApplicationsTheaterConferencesTouringRentalAudio for System Integration
