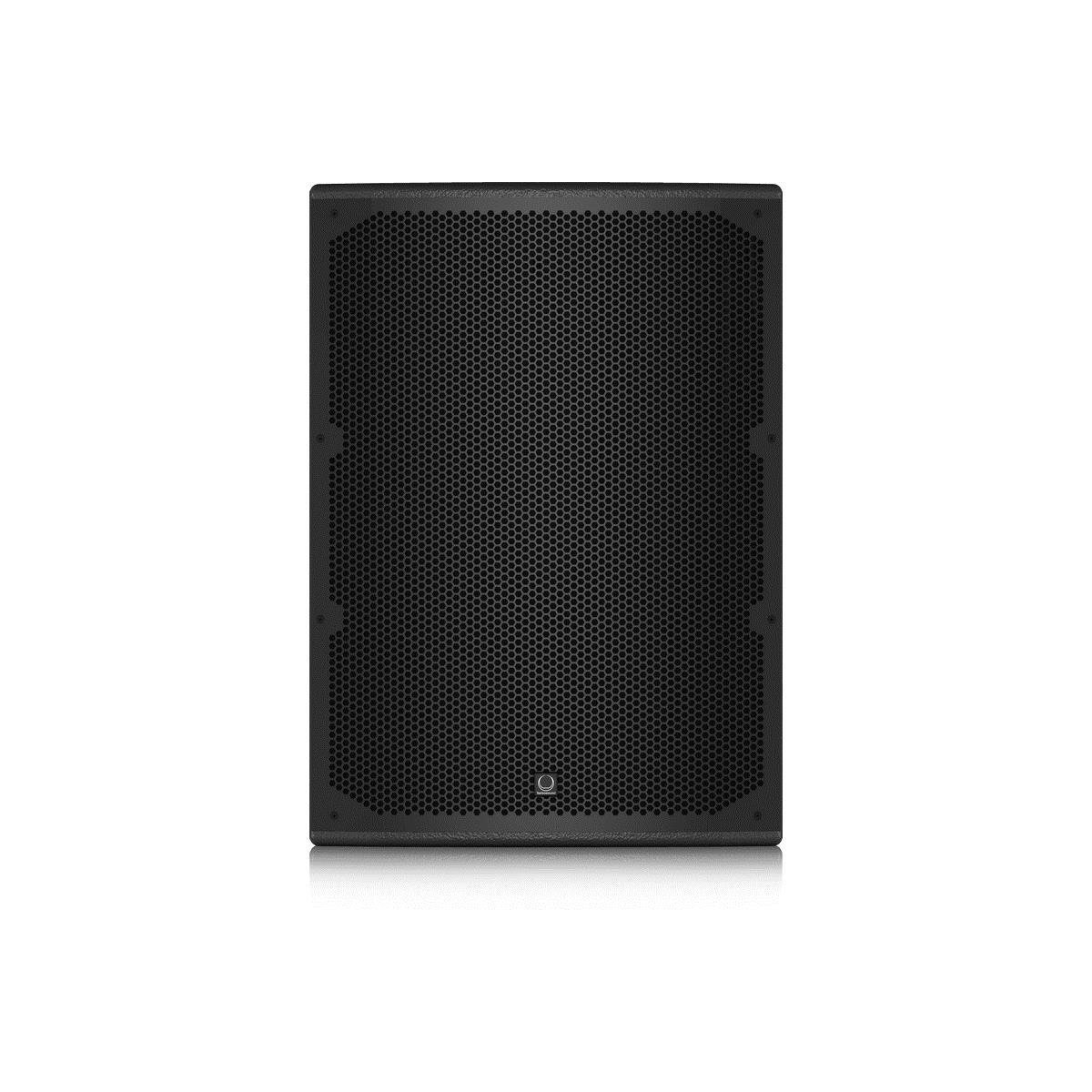

Description The DUBLIN TCX152 is a 1,400 Watt compact 15″ passive two way loudspeaker that is ideally suited for a wide range of portable or installed speech and music sound reinforcement applications. TCX152 consists of a trapezoidal enclosure housing a high excursion 15″ reflex-loaded low frequency driver with low mass voice coil for improved transient response, and a 1″ high temperature dome compression driver mounted on a rotatable converging elliptical waveguide, which provides a 90° horizontal by 60° vertical dispersion pattern. Featrures2 way loudspeaker for portable PA and fixed installation applications350 Watts continuous, 1,400 Watts peak powerHigh excursion 15″ low frequency driver with low mass voice coil for improved transient response1″ high temperature dome compression driver with extended high frequency reproductionRotatable converging elliptical waveguide provides 90? H x 60? V dispersionM10, M8 and M6 rigging points compatible with Turbosound and OmniMount* bracketsTrapezoidal cabinet shape enables visually unobtrusive loudspeaker arraysConcealed pole mount socket enables mobile applicationsIntegral handle for lifting and carrying15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finishPowder coated perforated steel mesh grille with foam backingNeutrik speakON* NL4 and barrier strip connectors SpecificationsFrequency Response85 Hz – 18 kHz /-3 dB 55 Hz – 20 kHz -10 dBNominal Dispersion90 deg. H x 60 deg. V at -6 dB pointsPower Handling (IEC)350 W continuous, 1400 W peakSensitivity99 dB (1 W at 1 m)Maximum SPL125 dB continuous, 131 dB peakImpedance8OhmsComponents1x 15″ / 1x 381.00mm LF driver 1 x 1″ / 1x 25.40mm HF compression driverConnectors2x Neutrik speakON NL4 1x barrier strip terminalsWiringPins 1 / 1- input, pins 2 / 2- linkConstruction15mm / 0.59″ birch plywoodFinishSemi matt black paintGrillePowder coated perforated steelFlying Hardware9x M10, 4x M8, 4x M6 PointsDimensions (H x W x D)25.7 x 18.3 x 16.6″ / 652.78 x 464.82 x 421.64mmWeight23.5kg / 51.81lbs
