Wizord 4i energizer Features:

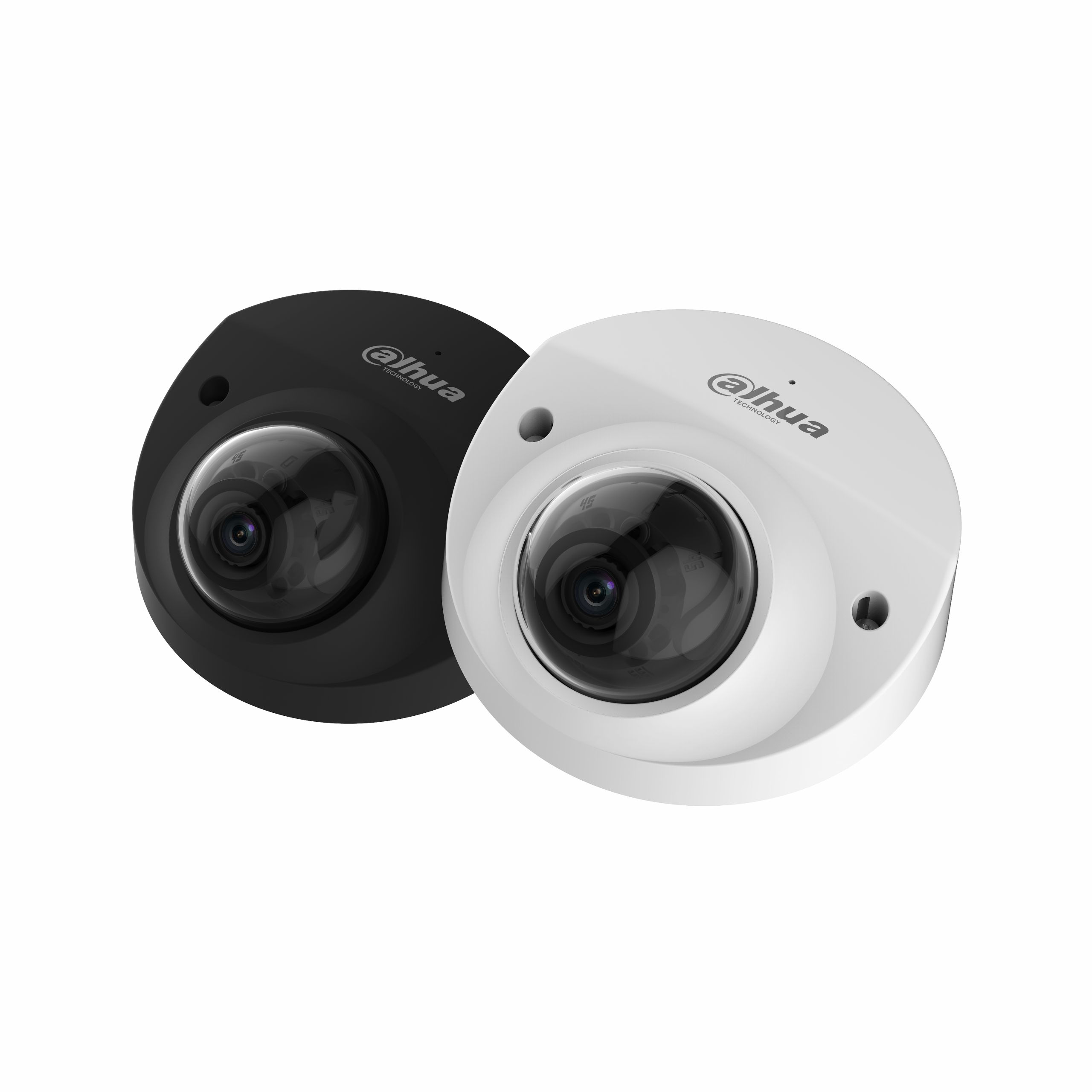

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select the multi-languageand NTSC/PAL, Support English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Czech, Dutch, Arabic. 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDBW2431F-AS-S2 4MP IVS built-in Mic Dome ip Camera Camera Image Sensor 1/3”4Megapixel progressive CMOS Max. Resolution 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Minimum Illumination 0.008 Lux @ F1.6 S/N Ratio > 56 dB Illumination Distance 30 m (98.4 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 8 (IR LED) Pan/Tilt/Rotation Range Pan: –30°–30° Tilt: 0°–80° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F1.6 F1.6 Field of View 2.8 mm:Horizontal 102° × Vertical 55° × Diagonal 121° 3.6 mm:Horizontal 84° × Vertical 45° × Diagonal 100 Iris Type Fixed Close Focus Distance 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8mm 56.0 m (183.7 ft) 22.4 m (73.5 ft) 11.2 m (36.7 ft) 5.6 m (8.5 ft) 3.6mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.2 ft) Smart Event IVS Tripwire; intrusion Video Video Compression H.265; H.264; H.264B; MJPEG (only supported by sub stream) Smart Codec Smart H.265 / Smart H.264 Video Frame Rate Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) Stream Capability 2 streams Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711a; G.711Mu; G.726 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec User/Host 20 Storage FTP; SFTP; Micro SD Card (support max. 256 GB); NAS Browser IE Chrome Firefox Management Software Smart PSS, DSS, DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: 5mA 3V–5V DC Alarm Output 1 channel out: 300mA 12V DC Power Power Supply 12V DC/PoE Power Consumption <5.4W Environment Operating Temperature –40°C to 60°C (–40°F to 140°F)/less than ≤ 95% RH Storage Temperature –40°C to 60°C (–40°F to 140°F) Protection IP67; IK10 Structure Casing Metal Dimensions 55 mm × Φ108.9 mm (2.2″ × Φ4.3″) Net Weight 0.38 kg (0.8 lb) Gross Weight 0.52 kg (1.1 lb)
