Wizord 4i energizer Features:

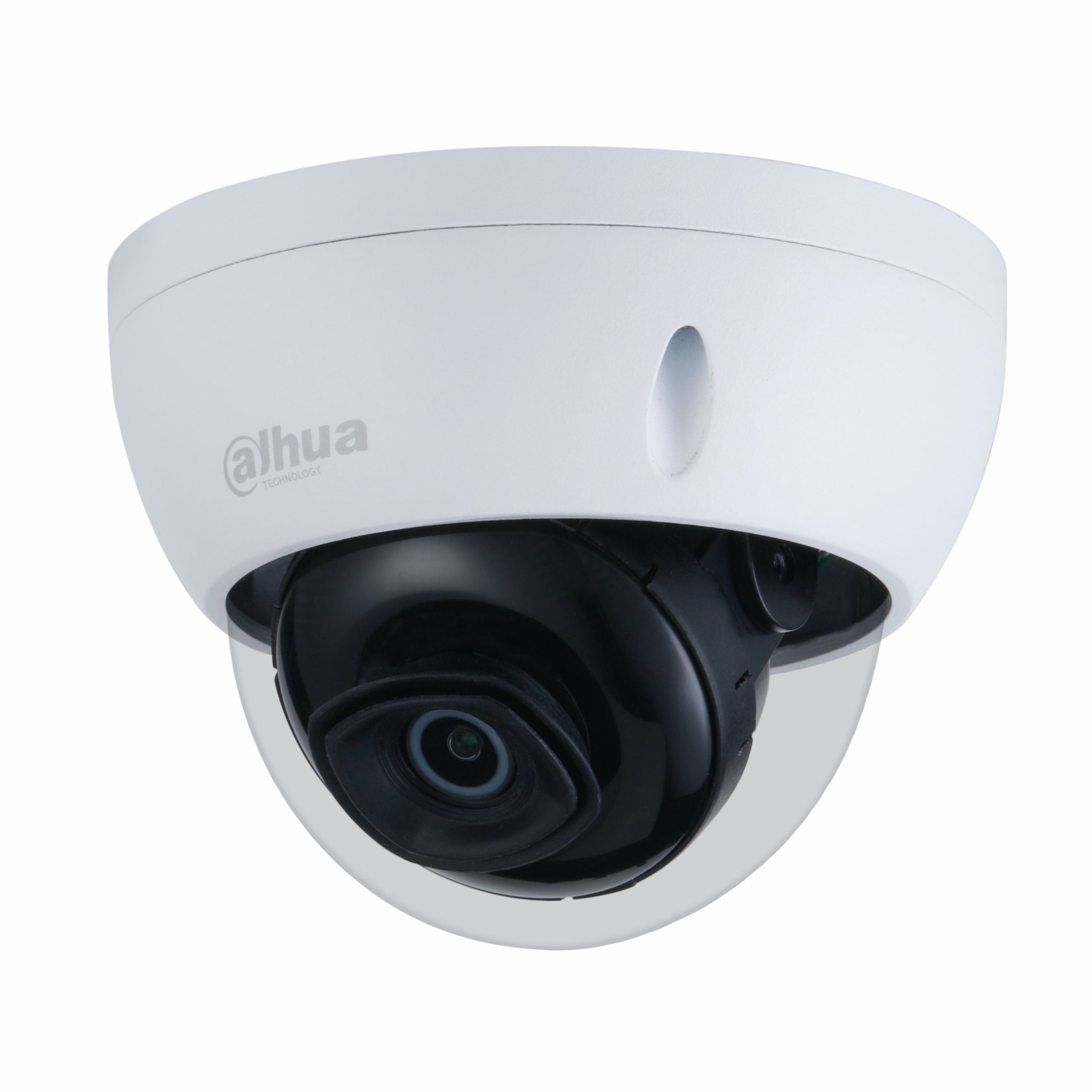

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select the multi-languageand NTSC/PAL, Support English, Italian, Spanish, Russian, French, German, Portuguese, Polish, Korean, Czech, Dutch, Arabic. 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDBW2441E-S 4MP IVS WizSense Mic Dome ip Camera Camera Image Sensor 1/2.9″ CMOS Max. Resolution 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance up to 30 m (98.43 ft) (IR LED) Illuminator On/Off Control Auto;Manual Illuminator Number 3 (IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 102°; V: 54°; D: 121° 3.6 mm: H: 84°; V: 42°; D: 101° Iris Control Fixed Close Focus Distance 2.8 mm: 1.1 m (2.30 ft) 3.6 mm: 1.7 m (4.27 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 63.6 m (208.66 ft) 25.4 m (83.33 ft) 12.7 m (41.67 ft) 6.4 m (21.00 ft) 3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m (56.10 ft) 8.5 m (27.89 ft) Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265 ; Smart H.264 Video Frame Rate Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: CIF@1fp *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Manual;Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711a; G.711Mu; G.726; PCM Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP Interoperability ONVIF (Profile S/Profile G); CGI; P2P User/Host 6 (Total bandwidth: 36 M) Storage FTP;SFTP; Micro SD card (support max. 256 GB) Browser IE; Chrome; Firefox Management Software DSS; DMSS Mobile Client iOS; Android Cyber Security Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade Certification Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Power Power Supply 12 VDC/PoE Power Consumption Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (ICR H.265 WDR max. Illumination intelligence on): 5 W (12 VDC); 6 W (PoE) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F) Operating Humidity ≤95% Protection IP67; IK10 Structure Casing Material Metal Product Dimensions 81.0 mm × Φ109.9 mm (3.19″× Φ4.33″) Net Weight 0.34 kg (0.75 lb) Gross Weight 0.49 kg (1.08 lb)
