Wizord 4i energizer Features:

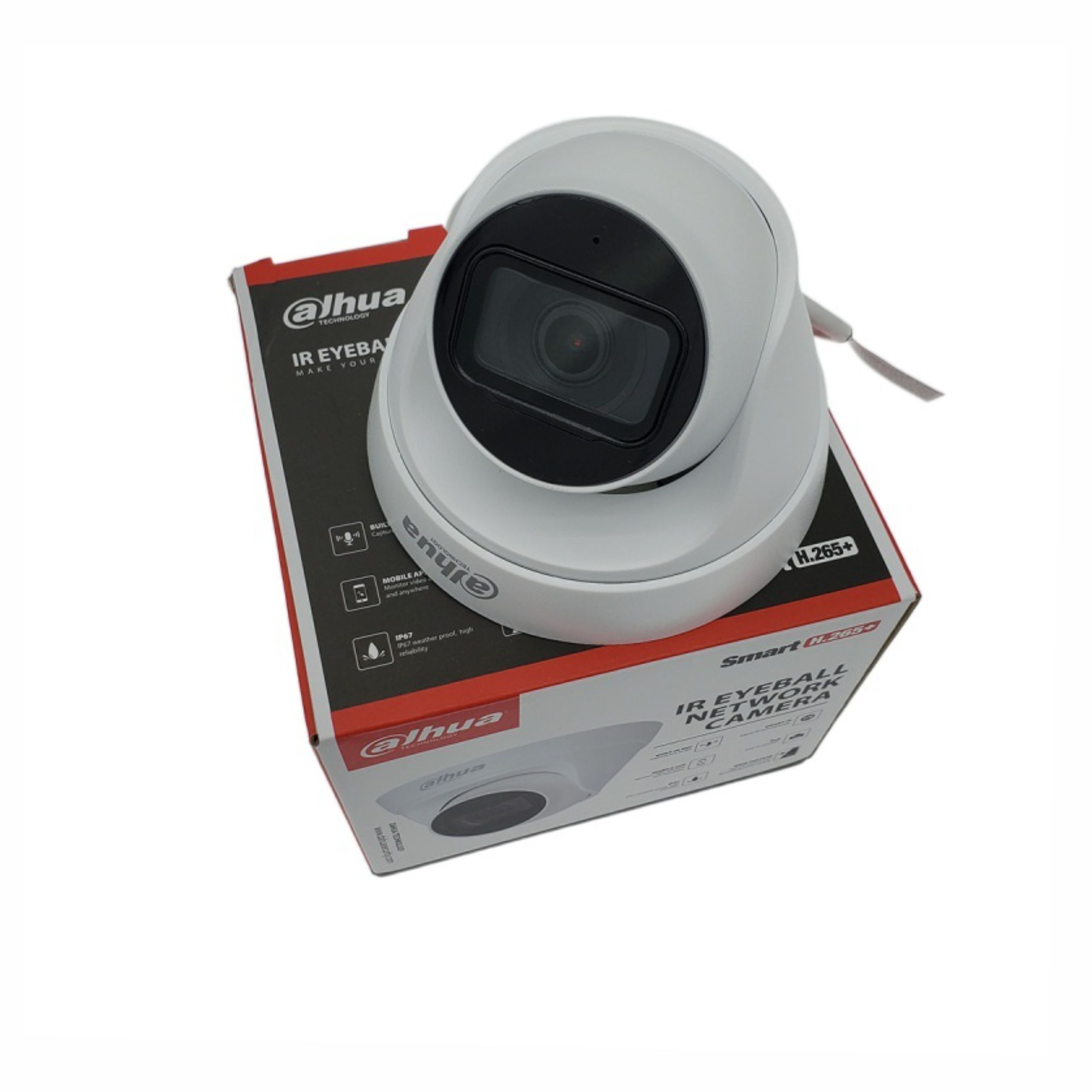

1.Please Note: 1).Original Dahua Global Version Camera,Camera supports firmware upgrade, 2).You can select NTSC/PAL, 3).The camera supports cloud services, and Imou APP supports remote video viewing and cloud storage. Dahua IPC-HDW1431T1-A-S4 4MP Built-in MIC Eyeball ip Camera Camera Image Sensor 1/3”4Megapixel progressive CMOS Max. Resolution 2688 (H) ×1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s S/N Ratio > 56 dB Min. Illumination 0.03 Lux @ F2.0 Illumination Distance 30 m (98.4 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 1(IR LED) Pan/Tilt/Rotation Range Pan: 0°–355° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F2.0 Field of View 2.8 mm: Horizontal: 93° Vertical: 53° Diagonal: 111° 3.6 mm: Horizontal: 81° Vertical: 44° Diagonal: 95° Iris Type Fixed Close Focus Distance 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.4 m (4.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8mm 50.0 m (183.7 ft) 22.4 m (73.5 ft) 11.2 m (36.7 ft) 15.1 m (18.4 ft) 3.6mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.2 ft) Video Video Compression H.265; H.264; H.264B; MJPEG(only supported by sub stream) Smart Codec Smart H.265 / Smart H.264 Video Frame Rate Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) Stream Capability 2 streams Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) Bit Rate Control CBR; VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Manual/Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart Illumination Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) Mirror Yes Privacy Masking 4 areas Alarm Alarm Event Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception Network Network RJ-45 (10/100 Base-T) SDK and API Yes Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P User/Host 20 Storage FTP; SFTP; NAS Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Power Power Supply 12V DC/POE (802.3af) Power Consumption < 5.1W Environment Operating Conditions -40°C to 55°C (-40°F to 131°F) /less than≤95% Strorage Conditions -40°C to 60°C (-40°F to 140°F) Protection IP67 Structure Casing Inner core:metal plastic; cover:plastic Dimensions 85.5 mm × Φ109 mm (3.4″ × Φ4.3″) Net Weight 0.25 kg (0.6 lb) Gross Weight 0.37 kg (0.8 lb)
